HOBBYMATE HB2205 Race Spec Motors:
Introducing the Hobbymate Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to
perform better than most in it s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from
any leading manufacturer will result in unreal thrust.
Specifications:
Model: HB2205
KV: 2300kv
Weight: Approx. 30g with wires
Wire AWG: 20AWG
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
HOBBYMATE 15A ESC:
HOBBYMATE 15A ESC is a super compact,lightweight,high performance speed controller for your racing multi-rotor.
Pre-flashed with BLheli and ready to use with Oneshot (aka oneshot125PWMsync)mode via compatible flight controllers running Cleanflight or similar.
The ESCs do not have a BEC, you will need to supply 5v power to your flight controller with a UBEC or stepdown voltage regulator.
WARNING: when upgrading firmware, always select "BlueSeries 12a" type firmware otherwise ESC may be permanently damaged
WARNING: Take great care to ensure the ESC input power is wired correctly as improper connections will permanently damage the ESC when first connecting the battery
Input: 2-4s Lipo
Constant: 15 Amps
Burst: 25 Amps
Weight: 4g bare board
Dimensions: 23x12.5x3mm
Motor wire: 70mm
Signal wire: 120mm
PCB - 4 Layer Blind hole PCB - 3oz Pour
Mosfet: N-Channel
OneShot and BLHeli 16.2 Pre Installed
Configuration: 12N14P
Motor Diameter: 27.9mm
Motor Height: 31.7mm
Prop Adapter Shaft Thread: M5
Input voltage: 3S-4S (12.6 - 16.8v)
Package :

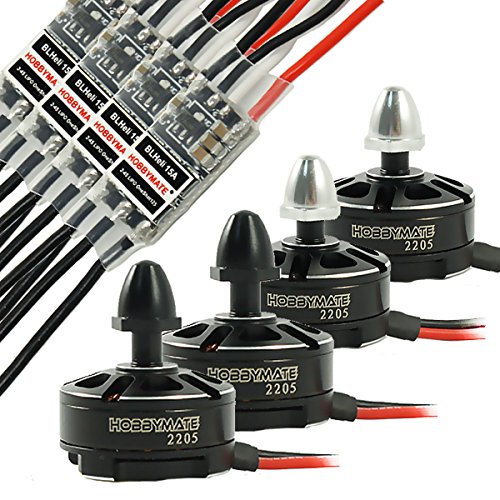

4 x HOBBYMATE HB2205 CW CCW KV2300 Brushless Motor
4 * HOBBYMATE 15A Mini ESC Oneshot125 Electronic Speed Controller
